Chocolate coating system

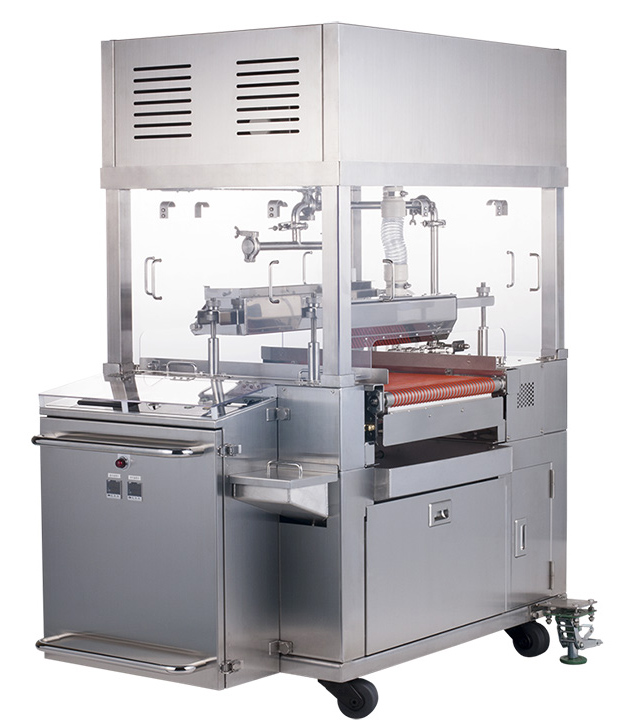

Chocolate enrobe (MER series)

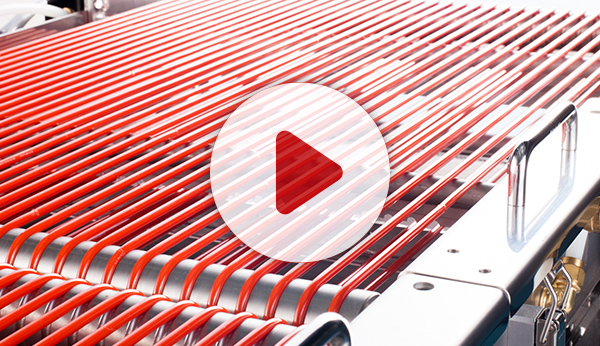

The warm water circulation scraper mechanism allows for the creation of beautiful coatings that hardly leave any marks on the product.
< Features >
· The entire part is made using stainless steel, which improves sanitation.
· High-level sanitary structures were applied to the conveyor, the piping, the tank and the pump, so they can be easily dismantled and cleaned.
· The machine allows for stable coating and easy handling.
· The new model reduces chocolate consumption by 30% (compared to our old model)
· In addition to half tops (standard), it can be used for full coating, half coating, straight line coating and curved line coating (optional).
· High-level sanitary structures were applied to the conveyor, the piping, the tank and the pump, so they can be easily dismantled and cleaned.
· The machine allows for stable coating and easy handling.
· The new model reduces chocolate consumption by 30% (compared to our old model)
· In addition to half tops (standard), it can be used for full coating, half coating, straight line coating and curved line coating (optional).
< Specifications / types >
Type : MER-①-②-③-④
① Conveyance belt effective width (coating width):500W·600W~1000W
② Direction of product flow:Facing the control panel, R = from right to left, L = left to right
③ Tank capacity:70L (standard)
④ Conveyance surface height:700 mm~
(Options) Wire pinking unit (linear, curve), Half pinking shooter, and Wire pinking shooter
① Conveyance belt effective width (coating width):500W·600W~1000W
② Direction of product flow:Facing the control panel, R = from right to left, L = left to right
③ Tank capacity:70L (standard)
④ Conveyance surface height:700 mm~
(Options) Wire pinking unit (linear, curve), Half pinking shooter, and Wire pinking shooter
■Power:φ3╳AC 200V╳6KW~ ■Air:unnecessary ■City water:unnecessary ■Drainage:unnecessary
