Chocolate coating system

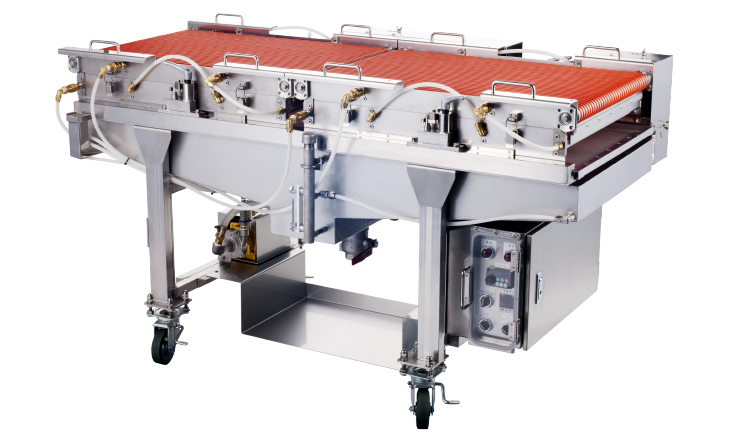

Recovery conveyor (RCC series)
It collects any extra chocolate after coating and keeps the coating neat.
< Features >
· We have adopted a warm water circulation scraper mechanism which can eliminate contamination on the belt due to the spread of chocolate after coating, and it also helps eliminate stains on the product.
· The entire part is made using stainless steel, which improves sanitation.
· The conveyor part is attached separately, so it can be removed. This machine allows for a reduced burden from cleaning.
· We have increased the amount of chocolate collected by 30% (compared to our old model).
· The entire part is made using stainless steel, which improves sanitation.
· The conveyor part is attached separately, so it can be removed. This machine allows for a reduced burden from cleaning.
· We have increased the amount of chocolate collected by 30% (compared to our old model).
< Specifications / types >
Type : RCC-①-②-③-④
① The number of connected conveyors Single conveyor:nothing displayed Double:Ⅱ(Roman number symbol)
② Working width of the conveyor:Standard 500w
③ Direction of movement - L:Left / R:Right (as viewed from the operating position)
④ Length of conveyor:Single/ L＝1,000mm Double/ L＝1,520mm
① The number of connected conveyors Single conveyor:nothing displayed Double:Ⅱ(Roman number symbol)
② Working width of the conveyor:Standard 500w
③ Direction of movement - L:Left / R:Right (as viewed from the operating position)
④ Length of conveyor:Single/ L＝1,000mm Double/ L＝1,520mm
■Power:φ3╳AC 200V╳6KW~ ■Air:unnecessary ■City water:unnecessary ■Drainage:unnecessary
